Converting Rolls
Combining different materials to create new materials
Composite materials and adhesives used in dry and solventless lamination require very precise temperature control. Jacket Rolls maintain high-precision surface temperature uniformity in 1℃ increments across a wide range of temperatures, enabling full control when combining such diverse materials as polyester, polyethylene, polypropylene and other plastic films, aluminum foil, paper and iron sheets to produce a variety of composite materials.

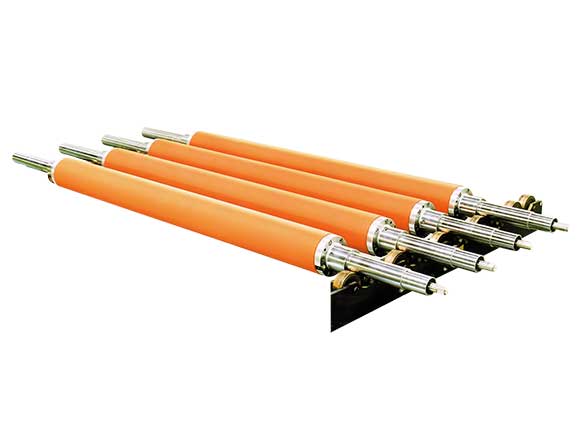

110mmΦ × 1,600mmL
60℃～150℃ max.10m/min.
Silicon Rubber 2mm

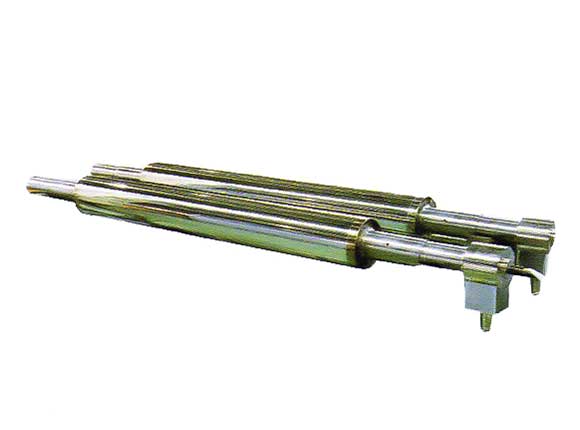

150mmΦ × 1,200mmL
80℃～150℃ 70m/min.
Hard-chrome plating, mirror finish
Main applications
- Flat-Screen TVs and Other Displays (LCD/PDP)
- Snack/Cup Noodle Containers
- Retort Pouches and Other Food Packaging
- Electronic Parts Materials（Printed Circuit Boards/Leadframes）
- Plastic Greenhouses and Other Agricultural/Industrial Materials
- Beer/Soft Drink Cans
- Washing Machines/Refrigerators
- Automobile Interior Materials
- Other Packaging Materials
Types of Induction Heated Jacket Rolls
-
Synthetic Fiber Thermal Processing Rolls -
Converting Rolls -
Rolls for Non-woven Calender -
Rolls for Paper Calender -
Rolls for Battery Press/Calender -
Advanced High-Precision Induction Heated Jacket Rolls
